CYCOSPRAY has extensive experience in various aspects of tool-making. With our excellent workmanship, our product is easy to install and of high-quality, helping you increase productivity and improve utilization. CYCOSPRAY supports single-piece, multi-variety, small-batch to large-batch fixture design and machining production technology.
- High Precision: Standard dimensional tolerance of ±0.005mm(0.0002in)
- Various CNC machines: 3-axis, 4-axis, and 5-axis CNC machines
- Various Work Techniques: CNC milling, CNC turning, wire EDM, etc.
- Get your products and parts ready in as fast as 24 hours
- Certifications: ISO9001:2015, IATF 16949:2016
What is a fixture?
A fixture is a machining tool regarded as a tool of positioning and stability. We use fixtures when we need to assemble several parts and locate them accurately, so they must be tightly fasten to the product.
The application of fixtures can guarantee the precision of machining, stabilize the quality of products, improve labor productivity and the working condition of workers.
In the time of booming CNC machine tool technology, fixtures are developing towards high precision and high efficiency today.
Types of fixtures we offer
For different usage scenarios and purposes, we can provide different types of fixtures for you.
Based on their uses:
Universal Fixture
Adjustable Fixture
Milling Fixture
Based On Their Power Resource
Pneumatic-Hydraulic Combined Fixture
Vacuum Fixture
Special Fixture
Based On Their Functions
Boring Fixture
Manual Fixture
Electric Fixture
Modular Fixture
Lathe Fixture
Grinding Fixture
Pneumatic Fixture
Magnetic Fixture
Follower Fixture (Work Holding Pallet)
Drilling Fixture
Modular Machine Fixture
Hydraulic Fixture
Electromagnetic Fixture
Principles of CYCOSPRAY fixture design
Precision design is a crucial part of the production process, our design team is equipped with the latest technology to offer you the best products. We have over 200 first-line workers, 100 machines and a quality detection team of over 30 members, which can accommodate our customers’ needs. CYCOSPRAY can make your ideas reality with our professional solutions.
When designing fixtures, we take into consideration some basic principles like:
- Stability and Reliability: To ensure machining accuracy, the first thing is to choose the locating element correctly, we also do locating error analysis when necessary. Besides, we pay attention to the impact of other parts to meet the requirements of machining accuracy.
- Flexibility and Adaptability: To accommodate various work-piece sizes, shapes, and configurations, we design our products with flexibility. For different work-pieces or production requirements, we manage to make our products to be easily reconfigured or modified.
- Repeatability and Reusability: To minimize the need for frequent rework or redesign, allowing for efficient and cost-effective production, our products can provide consistent and repeatable results when used repeatedly.
- Rigidity and Intensity: To withstand machining forces, minimize vibration, and maintain dimensional accuracy, the structure of the fixtures should be rigid and stable. What is more, they can reduce the work intensity of operators and make operation simply, safely and labor-saving.
- Interchangeability and Economically: To guarantee productivity and save costs, fixtures design should make full use of materials, minimize complex or unnecessary features. The consumable parts must be able to replace quickly and easily without using other tools.
Why CYCOSPRAY?
Delivery on time: We have two factories, more than 200 workers and over 100 machines, we can fill your order on time with high quality.
High accuracy: We have a range of advanced equipment and rigorous quality detection team, we have strict requirements for every single product.
After sales service: We are committed to a 24-hour service, if you have any questions, please feel free to contact us.
Diverse materials: We offer over 60 production-grade materials including metal, plastic, and ceramic, and take great care to ensure the right material is used for every part.

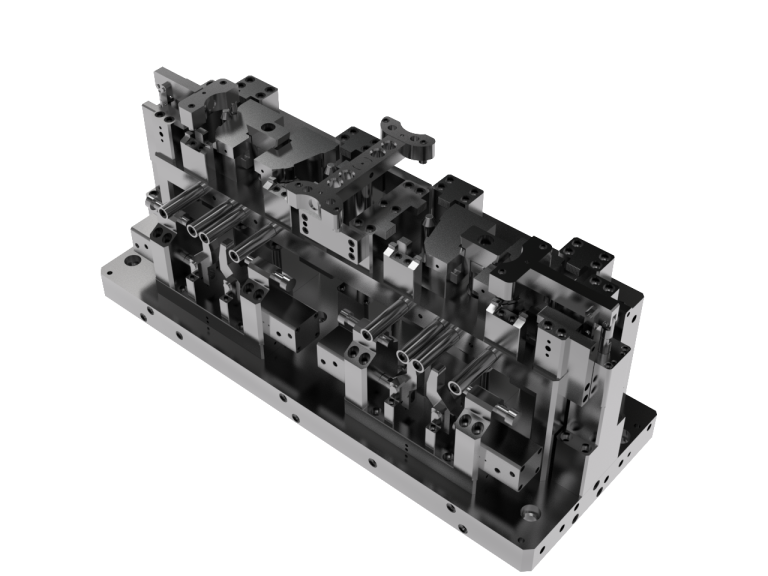

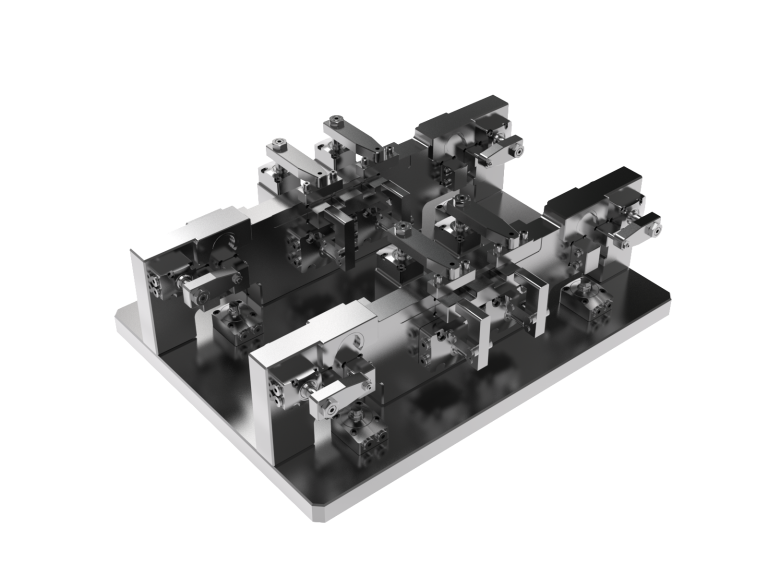

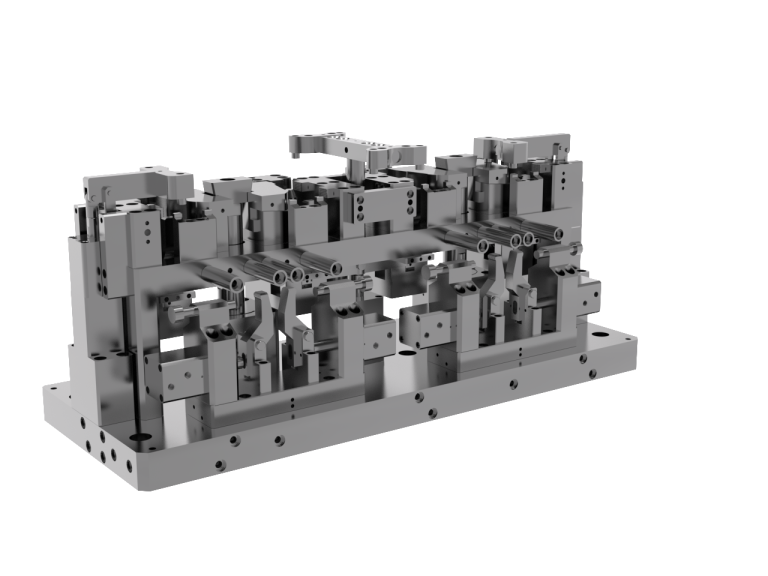

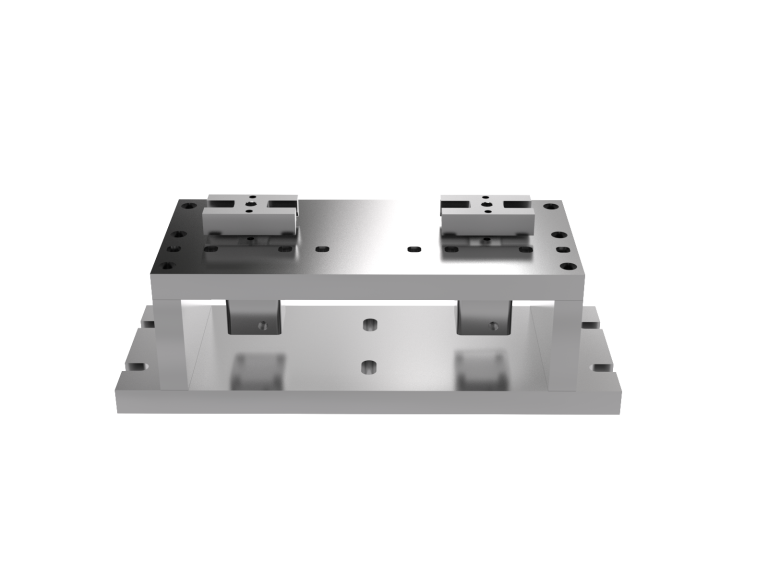

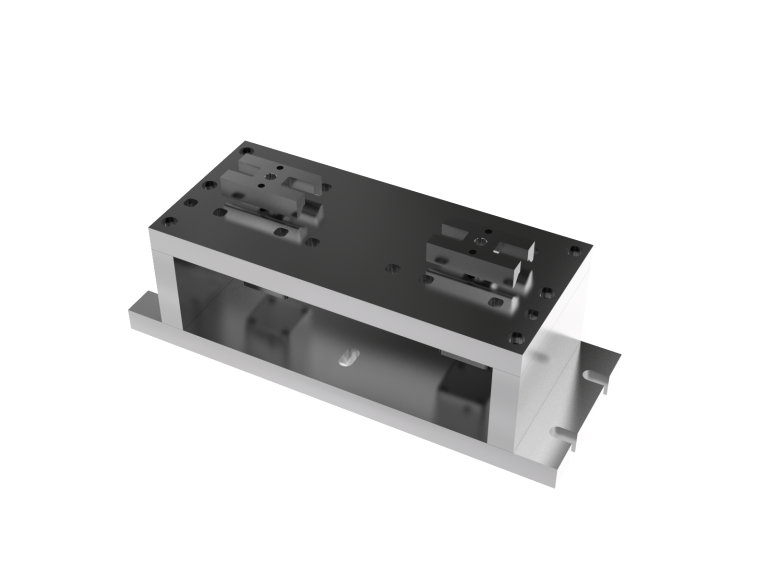

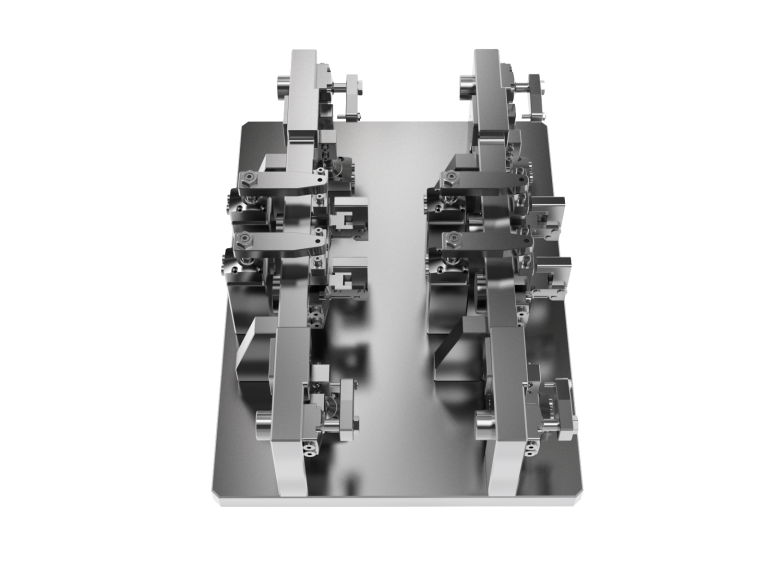

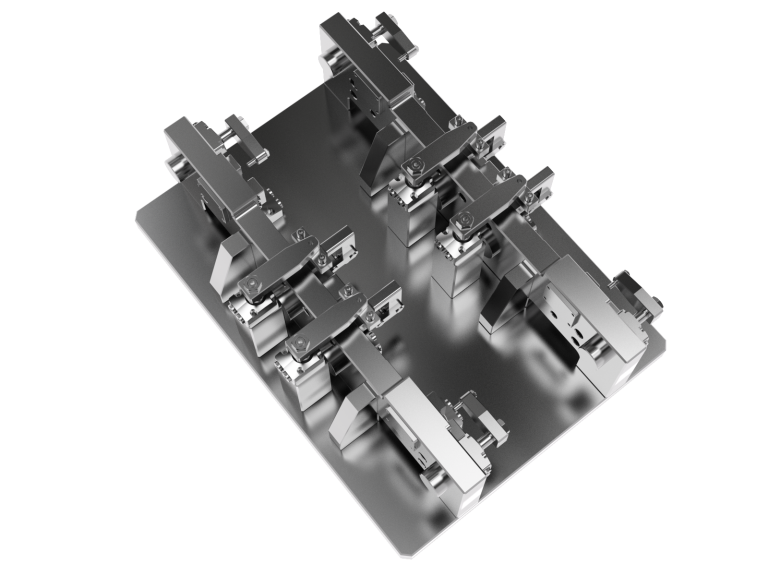

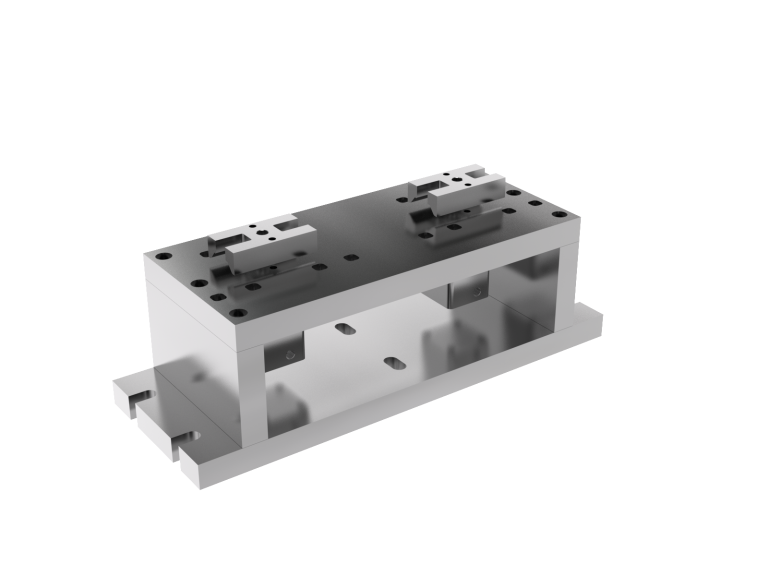

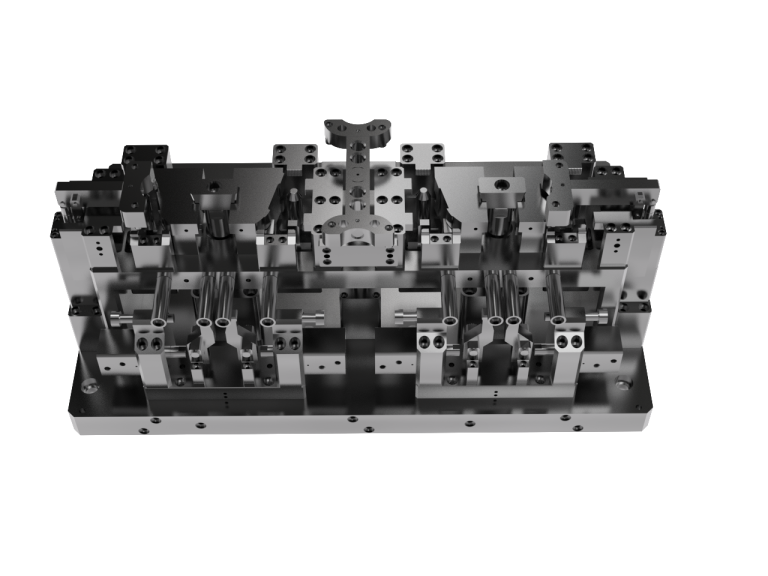

Cases of Precision Tooling & Fixture Design products and parts
